詳細說明：
AWM 2651
聚氯乙烯絕緣排線
PVC Insulated Flat Ribbon Wire
標準 Standard: UL 758,1581
注冊號 Registration No:E466663

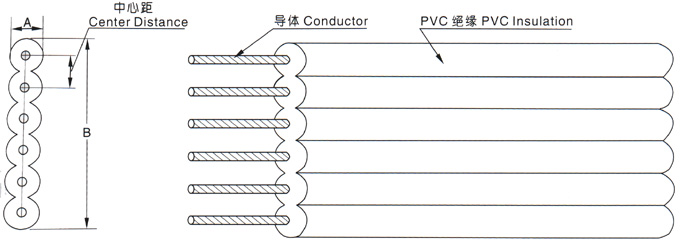

■ 構造 CONSTITUTION：
■ 印字 MARKING
AWM E466663 SHANGHAI GIFIVI 2651 VW-1SC( )AWG 105℃30℃
■ 產品說明
●額定電壓：300V， 額定溫度：105℃
●導體使用單根或絞線36-14AWG裸銅或鍍錫絲
●PVC絕緣
●可通過UL VW-1垂直耐燃試驗
●使用標準厚度、易剝、易裁
●具有抗酸堿、耐油、防潮、防霉等特性
■ 應用
適用于電子計算機及商務機內部連線
PRODUCT DESCRIPTION
●Rated voltage: 300V,Rated temperature:105℃
●Tinned or bare,stranded or solid copper conductor,36-14AWG
●PVC insulation
●Passes UL V W-1 vertical flame test
●Uniform insulation thickness of wire to ensure easy stripping and cutting
●Resistant to acids,aldalis,oils,moisture and fungi
APPLICATION
Internal wiring of computers and electric business machines
UL 2651 105℃ 300V
|
導體類型Conductor Type |
導體 Conductor |
芯數Cores |
中心距Center Distance
|
絕緣 Insulation |
最大 導體 電阻 Max Resistance at 20℃ |
最小 絕緣 電阻 Min Insulation Resistance at 20℃ |
耐電壓 Dielectric Strength AC 1 min |
標準 長度 Standard Length |
|||
| 線規Spec | 線數/線徑 |
直徑 Dia. |
標稱 厚度 Nom. Thick
|
標稱 外徑 Nom.Dia. AXB |
|||||||
| AWG | No./mm | mm | NO. | mm | mm | mm | Ω/km | MΩ. Km | V | FT(M) | |
|
絞合導體 Stranded Conductor |
28 | 7/0.127 | 0.38 | 3 | 1.22 | 0.38 | 1.14X3.58 | 223.75 | 15 | 1500 | 1640(500) |
| 4 | 1.14X7.80 | 984(300) | |||||||||
| 5 | 1.14X6.02 | 656(200) | |||||||||
| 6 | 1.14X7.24 | ||||||||||
| 7 | 1.14X8.46 | ||||||||||
| 8 | 1.14X9.68 | ||||||||||
| 9 | 1.14X10.90 | ||||||||||
| 10 | 1.14X12.12 | ||||||||||
| 26 | 7/0.16 | 0.48 | 3 | 1.34 | 0.38 | 1.24X3.92 | 139.73 | 15 | 1500 | 984(300) | |
| 4 | 1.24X5.26 | ||||||||||
| 5 | 1.24X6.60 | ||||||||||
| 6 | 1.24X7.94 | ||||||||||
| 7 | 1.24X9.28 | 656(200) | |||||||||
| 8 | 1.24X10.62 | ||||||||||
| 9 | 1.24X11.96 | ||||||||||
| 10 | 1.24X13.30 | ||||||||||
