詳細說明：
ST STW
電源線
Power Cord
標準 Standard: UL 62, 1581 CSA C22.2 No.49
注冊號：Registration No:E466663

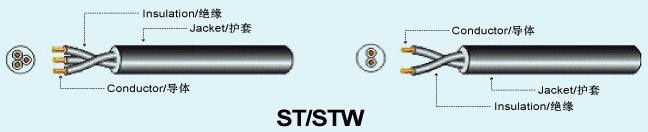

■ 構造 CONSTITUTION：
■ 印字MSTKING
(UL) E466663 ST ( ) AWG×() 105℃ 300V VW-1---C(UL)ST ( )AWG×() 105℃ 600V FT1 GIFIV LF
(UL) E466663 STW ( ) AWG×() 105℃ 300V VW-1---C(UL)STW ( )AWG×() 105℃ 600V FT1 GIGIV LF
■ 產品說明
●額定電壓：600V， 額定溫度：105℃
●導體使用單根或絞線裸銅
●PVC絕緣
● PVC護套
●可通過UL VW-1及 CSA FT1垂直耐燃試驗
● 使用標準厚度、易剝、易裁
● 具有耐堿、耐油、防潮、防霉、環保等特性
■ 應用
一般電源線
PRODUCT DESCRIPTION
●Rated voltage: 600V，Rated temperature:105℃
●Bare,stranded or solid copper conductor
●PVC insulation.
● PVC Jacket
●Passes UL VW-1 & CSA FT1 vertical flame test
● Uniform insulation thickness of wire to ensure easy stripping and cutting
● For general purpose internal wiring of electronic and electrical equipment.
APPLICATION
General purpose power supply cord
ST STW 105℃ 600V
注：①ST、STW 所額定溫度也可為60℃、75℃、90℃ ②STW 適用于戶外
|
型號 Style |
導體 Conductor |
絕緣 Insulation |
護套 Jacket |
20℃最大 |
最小絕緣電阻 Max Insulation Resistance at 20℃ |
耐電壓 Dielec- tric Strength AC 1 min |
標準長度 Standard Length |
||||
|
線規 Spec |
線數/線徑 | 直徑 Dia |
標稱厚度 Nom. Thick. |
標稱外徑 Dia. |
標稱厚度 Nom. Thick. |
標稱外徑 Dia. |
|||||
| AWG | No./mm | mm | mm | mm | mm | mm | Ω/Km | MΩ.Km | V | Ft(M) | |
|
SJT SJTW |
18-2c | 41/0.16 | 1.18 | 0.76 | 2.7 | 1.52 | 8.5 | 21.8 | 15 | 1500 | 656(200) |
|
18-3c |
8.9 | 328(100) | |||||||||
|
18-4c |
9.6 | ||||||||||
|
16-2c |
26/0.254 | 1.49 | 0.76 | 3.0 | 1.52 | 9.1 | 13.7 | ||||
|
16-3c |
9.5 | 328(100) | |||||||||
| 16-4c | 10.3 | 328(100) | |||||||||
|
14-2c |
41/0.254 | 1.88 | 0.76 | 3.45 | 2.03 | 11.0 | 8.62 | 328(100) | |||
|
14-3c |
41/0.254 |
1.88 |
0.76 | 3.45 | 2.03 | 11.5 | 8.62 | 328(100) | |||
|
12-2c |
65/0.254 | 2.37 | 0.76 | 4.0 | 2.41 | 12.8 | 5.43 | 164(50) | |||
|
12-3c |
13.4 | ||||||||||
|
10-2c |
49/0.37 |
3.38 |
1.14 |
5.7 |
2.41 |
16.2 |
3.41 |
||||
|
10-3c |
17.1 | ||||||||||
